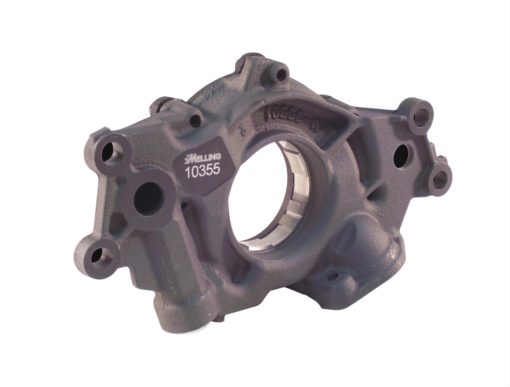

Melling – High Volume High Pressure 9.5 GPM LS Oil Pump (10355)
$227.04
-
- High volume
- High pressure
- 9.5gpm volume
- +10psi pressure
- Suitable for VVT and AFM
- Requires 6+ quart oil sump capacity
Want to know if this is the right oil pump for your application? Check out our Melling Oil Pump Upgrade Guide below:
In stock
Frequently Purchased Together
Camshafts & Valvetrain
GPI – OEM Style LS2 / LS3 Timing Chain Dampener (12588670) Not for Use in Dry Sump Engines
$49.86
Valve Cover Gaskets
OEM Style – Valve Cover Gasket Chevy LS1 / LS2 / LS6 / LS7 / L92 (12637683)
$27.99
Description
We recommend this pump as an upgrade for the OEM LS3 oil pump in applications with added oiling system demands such as large external oil coolers, larger bearing clearances, turbochargers, etc. This is also the recommended oil pump for extreme (8000+) rpm applications. We recommend this pump as a replacement for the OEM L99 oil pump in all VVT applications.
- Orange spring (installed) – 70psi bypass
- Optional Yellow spring – 60 psi bypass
- Optional Green spring – 80psi bypass
Questions & Answers (14)
Customer questions & answers
-
i bought a 10296 oil pump and put it on my midly built 6.0 and it has the 70 psi spring in it and at high rpms it will get up to 130 psi and it has blown a whole in the oil pressure sensor and i dont know if changing put the relief spring will change the outcome at the higher rpms since its a 70 psi springs
-
Q i bought a 10296 oil pump and put it on my midly built 6.0 and it has the 70 psi spring in it and...... Read more answer nowAsked by on January 26, 2026 7:01 pmA I don't think that it will, I'm not sure if theres a better alternative/exterior fix for this scenario
Im doing a complete dod delete in a 07 gmc sierra 1500 5.3,I’ve blocked all towers plugged relief valve in the pan, Which oil pump should I use in it
-
Q Im doing a complete dod delete in a 07 gmc sierra 1500 5.3,I’ve blocked all towers plugged relief...... Read more answer nowAsked by on January 9, 2026 5:34 pmA I would use the melling 10295
Which oil pump will I need for the max performance 2.0?
-
Q Which oil pump will I need for the max performance 2.0? answer nowAsked by on January 9, 2025 7:53 pmA 10295 would be fine for sbe engines, if built engine 10296
427 stroker nitrous motors looking to turn around 7500-8000 rpm, should I get the 10355 or 10355hv
-
Q 427 stroker nitrous motors looking to turn around 7500-8000 rpm, should I get the 10355 or 10355hv answer nowAsked by on November 24, 2024 11:45 amA For standard volume oil pan the 10355, if you have a larger capacity oil pan the 10355hv
Will this fit a 2016 gmc sierra 5.3?
-
A This is for LS application you'll want this oil pump https://gwatneyperformance.com/product/katech-gen-v-l83-l86-wet-sump-oil-pump-kat-a7503/
Hi I have a question it says added oil systems does that mean you need to add extra oil products or you can put it over the stock pump I have a ls3 getting a stage 4 cam and I don’t know which oil pump to get. Help please
-
Q Hi I have a question it says added oil systems does that mean you need to add extra oil products ...... Read more answer nowAsked by on April 29, 2024 1:17 amA You don't need the 10355 you'll be good with a 10296
Could I run this on my factory L99 stock with a cold air intake and a muffler delete
-
Q Could I run this on my factory L99 stock with a cold air intake and a muffler delete answer nowAsked by on January 1, 2024 8:58 pmA Yes
Have a L76 I'm doing a AFM DELETE and keeping VVT . WITH A PHASE LIMITER SHOULD I GO WITH THE 10355 OIL PUMP. doing a cam swap . Should I change timing chain . Has 240 thousand. Miles
-
Q Have a L76 I'm doing a AFM DELETE and keeping VVT . WITH A PHASE LIMITER SHOULD I GO WITH THE 103...... Read more answer nowAsked by on June 1, 2022 11:05 pmA I would yes
HELP! 2012 Camaro SS 6.2l cammed, Pro Charged and forged short block. What do you recommend?
-
Q HELP! 2012 Camaro SS 6.2l cammed, Pro Charged and forged short block. What do you recommend? answer nowAsked by on November 30, 2021 9:25 pmA This oil pump will work great for your application
I just installed this oil pump, 10355. (2015 chevy ss) i did not removed the relief valve inside the oil pan. im only getting around 50 while hot and 60 cold psi at higher rpms. is this normal for this pump or should i have removed the relief valve. thanks
-
Q I just installed this oil pump, 10355. (2015 chevy ss) i did not removed the relief valve inside ...... Read more answer nowAsked by on September 7, 2021 8:37 amA That sounds normal and you shouldn't have to remove the relief
-
- 1
- 2
-
Works great
Great oil pump for my build ls3
Part works fine thank u guys
Good quality it works just fine.
