Introducing the Boostmaster 396 – Built for Boost
Introducing the Boostmaster 396 – Built for Boost, Not for Show
At Gwatney Performance, we don’t build engines for Instagram likes—we build them to survive real abuse. The kind of abuse that comes with serious boost, big power, and weekend-after-weekend of hammering the throttle without worrying if the bottom end will hold together. That’s exactly why we created the Boostmaster 396.
Why the L8T Iron Block?
Let’s get one thing straight: this isn’t about nostalgia or doing what everyone else does. We picked the GM L8T iron block because it works. Aluminum might save a few pounds, but once you start pushing real boost, ring seal suffers, cylinder distortion creeps in, and you’re left chasing issues. Iron holds its shape. It keeps the bores round. It handles combustion pressure like a champ. This block was made for battle.
Smarter, Not Just Stronger

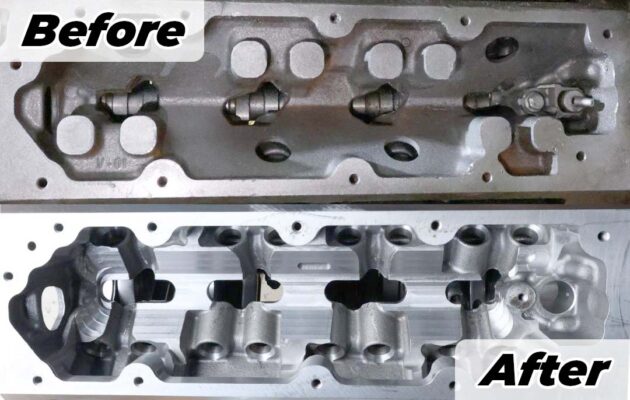

Iron blocks aren’t light—until now. Our in-house lightening program strips 23 pounds from non-critical areas without compromising structural integrity. That means you get the benefits of iron—strength, stability, durability—without the full weight penalty.
What’s Inside Matters
This isn’t a parts-bin build. The Boostmaster 396 is packed with purpose-built components that have one job: hold up under pressure.
- Crankshaft: Callies Magnum 3.700” with 8 counterweights – stronger and smoother at high RPM
- Rods: Callies Ultra Enforcer I-Beams with ARP Ultra 7/16” bolts – rock solid, no surprises
- Pistons: Diamond/GPI custom 2K forged, 10cc dish – built with forced induction in mind
- Wrist Pins: Trend H-13 tool steel, .927”, .250” wall – heat-tolerant, load-resistant
- Ring Pack: Total Seal AP steel top, Napier 2nd, 1.5/1.5/3mm – designed for high-boost sealing
Why the 396 Works
Here’s what makes this short block more than just another build:
- Optimized stroke/bore ratio for efficient combustion and airflow
- Improved ring seal and journal stability under high boost loads
- Superior gasket sealing under extreme pressure and temperature
- Cam, main, and lifter bores hold oil clearance consistently—even when hot
- ARP main studs and King Racing bearings keep the bottom end tight and reliable
Engine Specs Snapshot
| Component | Spec |
|---|---|
| Block | GM L8T Iron (Gen V LT) |
| Crankshaft | Callies Magnum 3.700” (8 counterweight) |
| Rods | Callies Ultra Enforcer I-Beam, ARP Ultra bolts |
| Pistons | Diamond/GPI 10cc dish, .200” valve pockets |
| Wrist Pins | Trend H-13 Tool Steel, .927” x .250” wall |
| Rings | Total Seal AP Steel, Napier 2nd, 1.5/1.5/3mm HT oil |
| Bearings | King Coated Racing (Mains & Rods), Dura-Bond Cam |
| Fasteners | ARP Main Studs |
Final Word
If you’re tired of hearing that “aluminum is fine if you do it right,” and you just want something that works every time, the Boostmaster 396 is your solution. It’s not for everyone—but if you’re serious about big boost, big power, and long-term durability, this is your block.
No fluff. No filler. Just a short block built to handle real-world abuse.
Boostmaster 396 – Sleeved aluminum can take a beating. The Boostmaster 396 was built for war.
Available Now:
Assembled Short Blocks
