Circle D - M 245mm Pro Series PG/350/400 Torque Converter

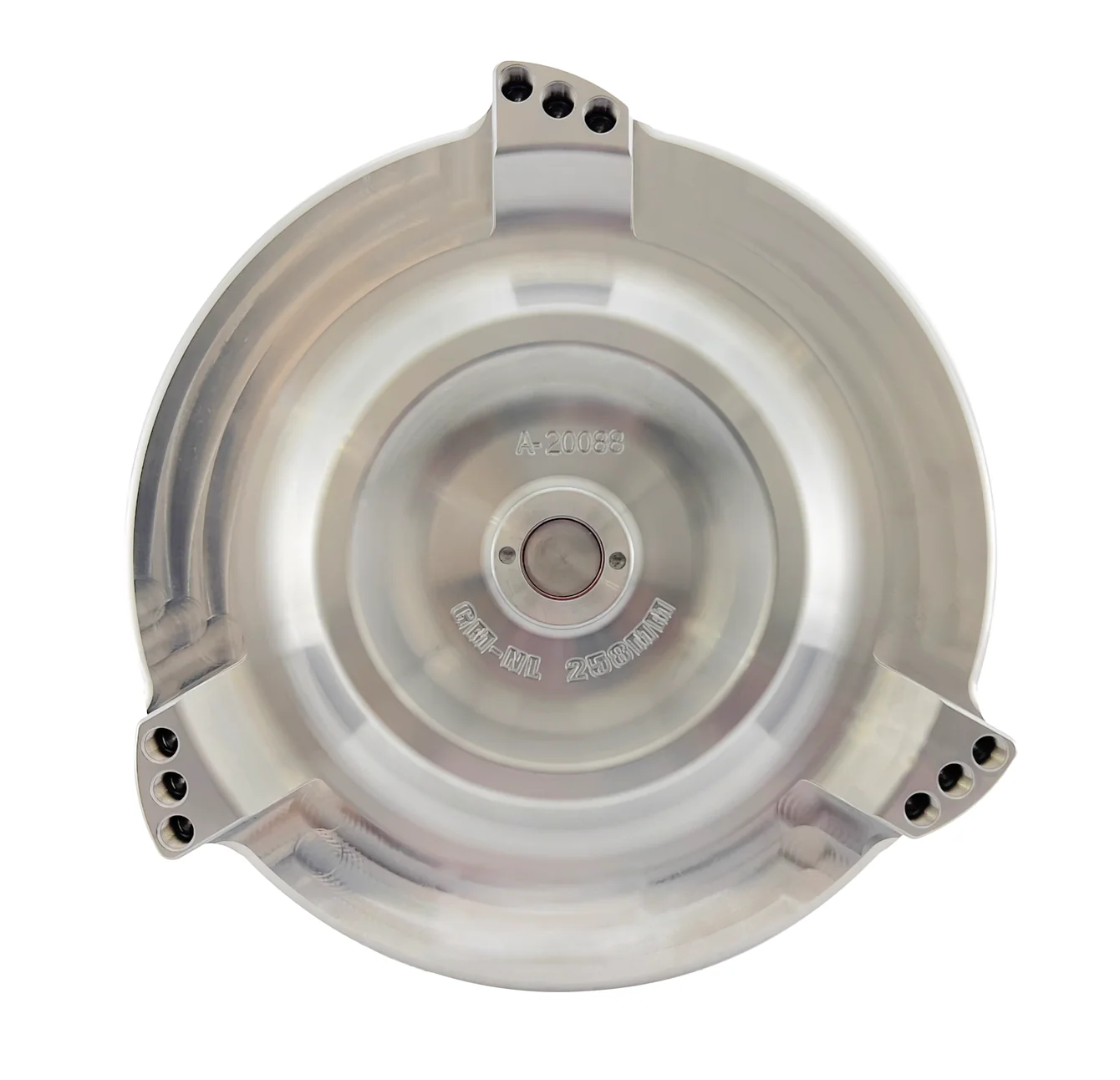

Circle D - M 245mm Pro Series PG/350/400 Torque Converter - Image 2
Circle D - M 245mm Pro Series PG/350/400 Torque Converter - Image 3

Circle D – M 245mm Pro Series PG/350/400 Torque Converter

(1 customer review)

$999.00

-

Circle D
  • CNC-machined billet steel drive cover
  • Screw-on pilot (universal bolt pattern option) allows adjustability for use with early GM pilot length as well as LS / Gen-V LT pilot length
  • Multiple bolt patterns available
  • 2,800 – 5,000+ RPM stall speed options
  • Fully furnace brazed impeller & turbine assemblies
  • TIG welding reinforcement of impeller & turbine fins in high stress areas
  • Roller bearings on both sides of the stator
  • Custom HD deep groove ball bearing turbine support
  • Billet steel pump hub
  • Billet steel turbine hub
  • Anti-ballooning plate

(Most converters are built-to-order; current lead time is around 3-4 weeks)

Ships directly from supplier

This item ships directly from the manufacturer. If your order is urgent, please reach out to determine the specific lead time.

245mm Stall Options *

Sprag Options *

Input Shaft Spline Count *

Bolt Pattern *

Purchase now and earn 999 Reward Points.

Learn More about GPI Reward Program


Category: Brand:
Description

GM 245mm Pro Series PG/350/400 Torque Converter

The GM 245mm Pro Series PG/350/400 Torque Converter by Circle D Specialties is a premium choice for those looking to optimize performance in street, street/strip, and sportsman drag racing applications. Designed for use with Powerglide, TH350, or TH400 transmissions, this torque converter is highly versatile, making it suitable for engines ranging from 300 to over 800 horsepower. With advanced engineering and a variety of customizable options, it ensures durability, adaptability, and exceptional performance under demanding conditions.

  • Core Features:
    • CNC-machined billet steel drive cover for maximum strength and precision.
    • Screw-on pilot with universal bolt pattern for compatibility with early GM and LS/Gen-V LT pilot lengths.
    • Multiple bolt patterns available for flexibility in various setups.
  • Performance Benefits:
    • Wide stall speed range (2,800 – 5,000+ RPM) to suit different performance needs.
    • Fully furnace brazed impeller and turbine assemblies for enhanced durability.
    • TIG-welded reinforcement in high-stress areas to withstand intense applications.
    • Roller bearings on both sides of the stator for smooth operation.
    • Anti-ballooning plate to maintain integrity under extreme pressure.
  • Customization Options:
    • Stock and custom sprag options available.
    • Input shaft spline count: 30-spline for Powerglide, TH350, and TH400 transmissions.
    • Universal bolt pattern support: 3×10.75, 3×11.06, and 3×11.50.
    • Optional billet flexplate for LS or Gen-V LT engines (6 or 8 bolt crank flange).
  • Build Specifications:
    • Billet steel pump hub and turbine hub for unmatched reliability.
    • Custom heavy-duty deep groove ball bearing turbine support.

Note: Custom converters have a lead time of 2-3 weeks.
