BTR – Trinity Intake Manifold for Gen V LT
From: $924.99
-
| Brand | Brian Tooley Racing |
|---|---|
| Part Type | Intake Manifold |
| Finish | BLACK |
| Manifold Material | CAST ALUMINUM |
| Fuel Rails Included | NO |
| Manifold Port Style | LTx – GEN V |
| Engine Type | Gen V LT |
| Manifold Fueling Style | EFI |
Frequently Purchased Together
Flex Fuel Kits
From: $262.50
This product has multiple variants. The options may be chosen on the product page
From: $729.99
This product has multiple variants. The options may be chosen on the product page
Description

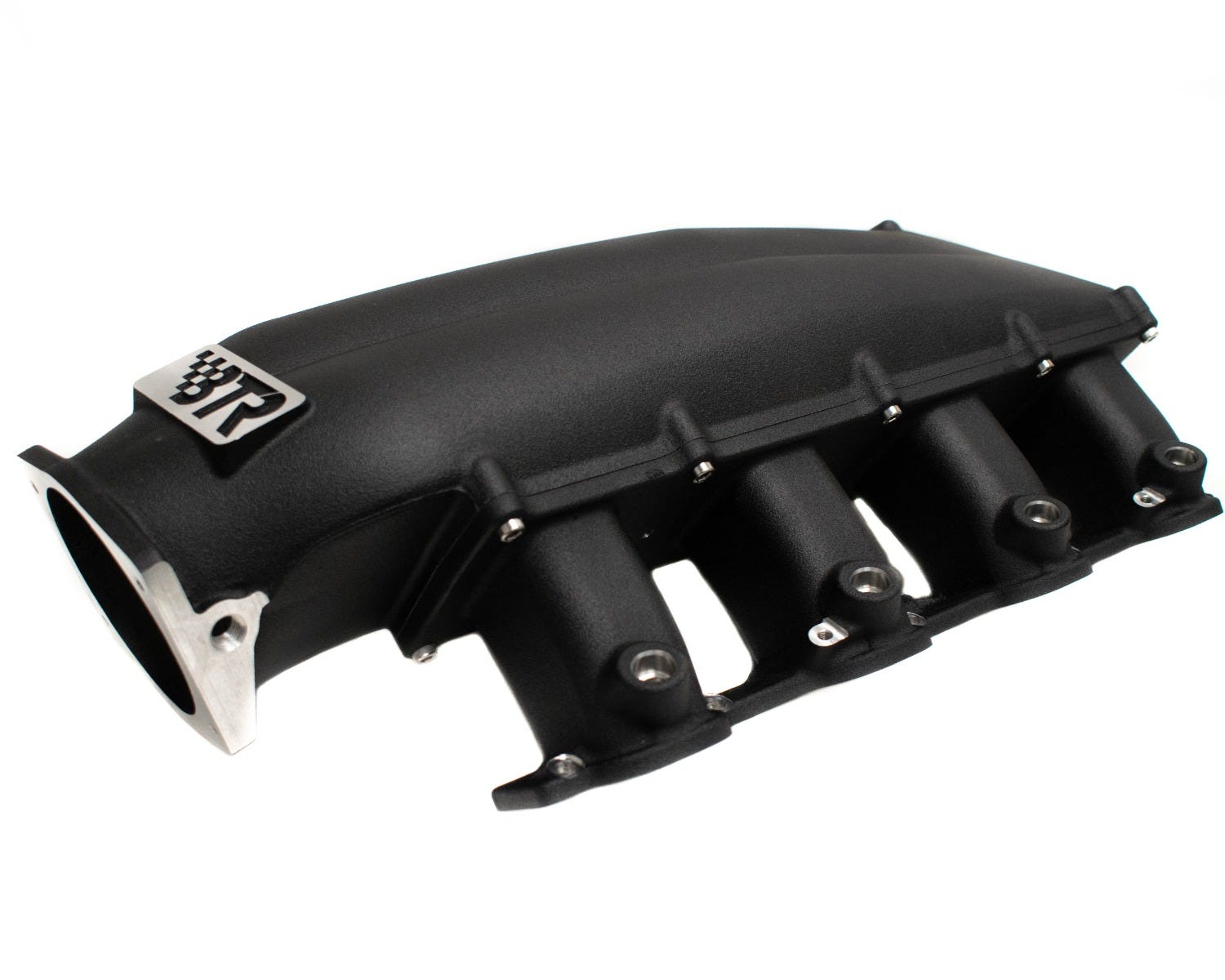

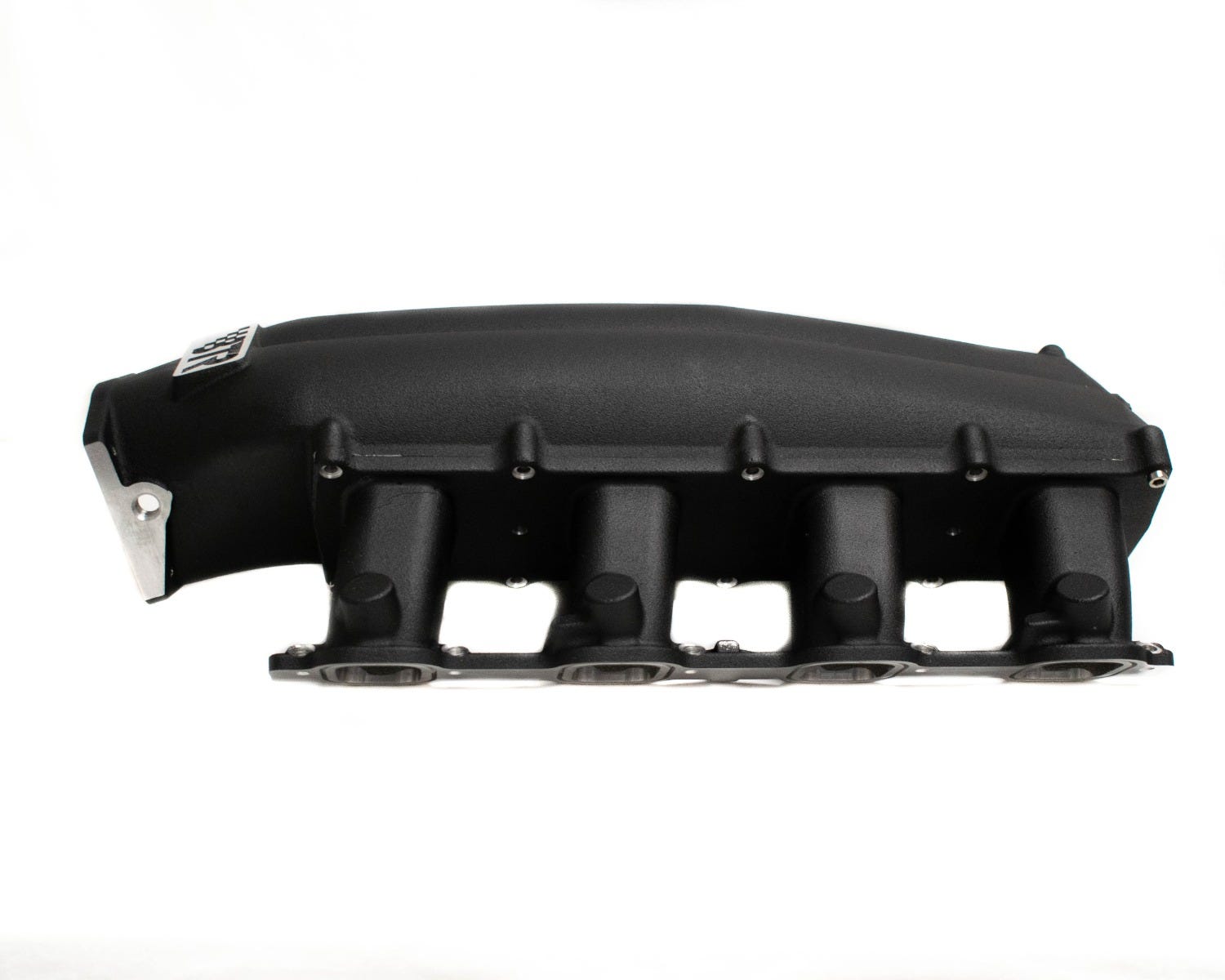

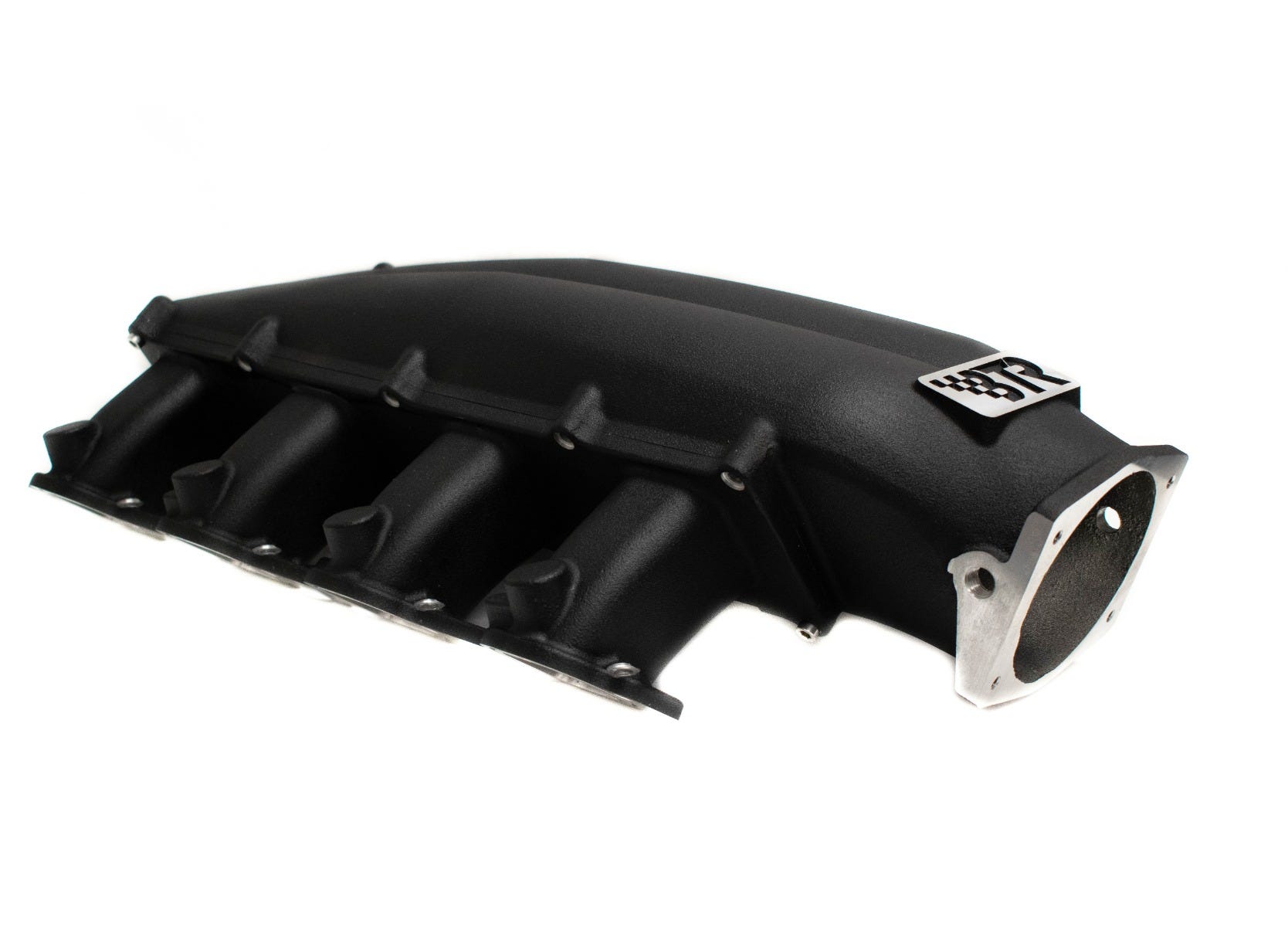

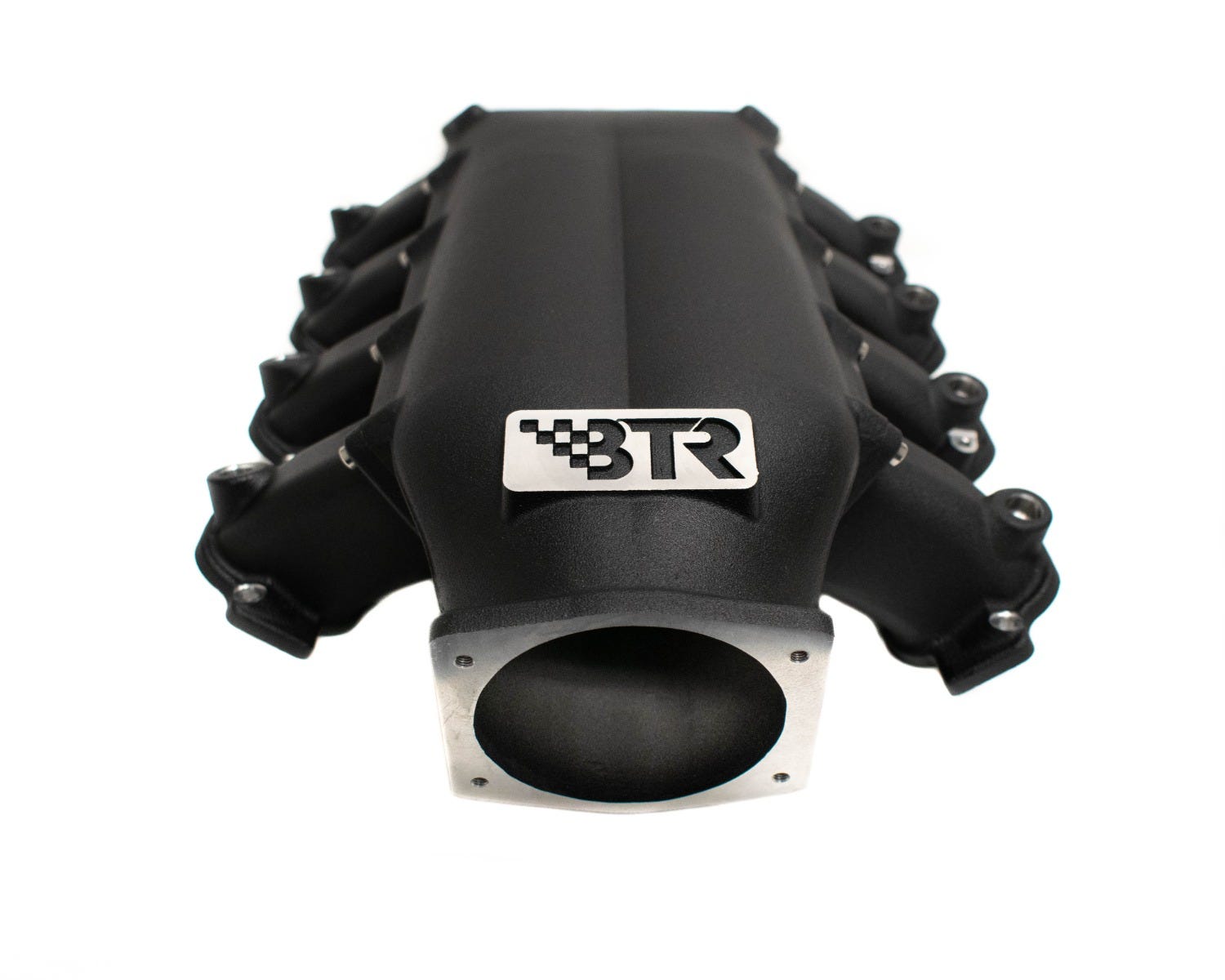

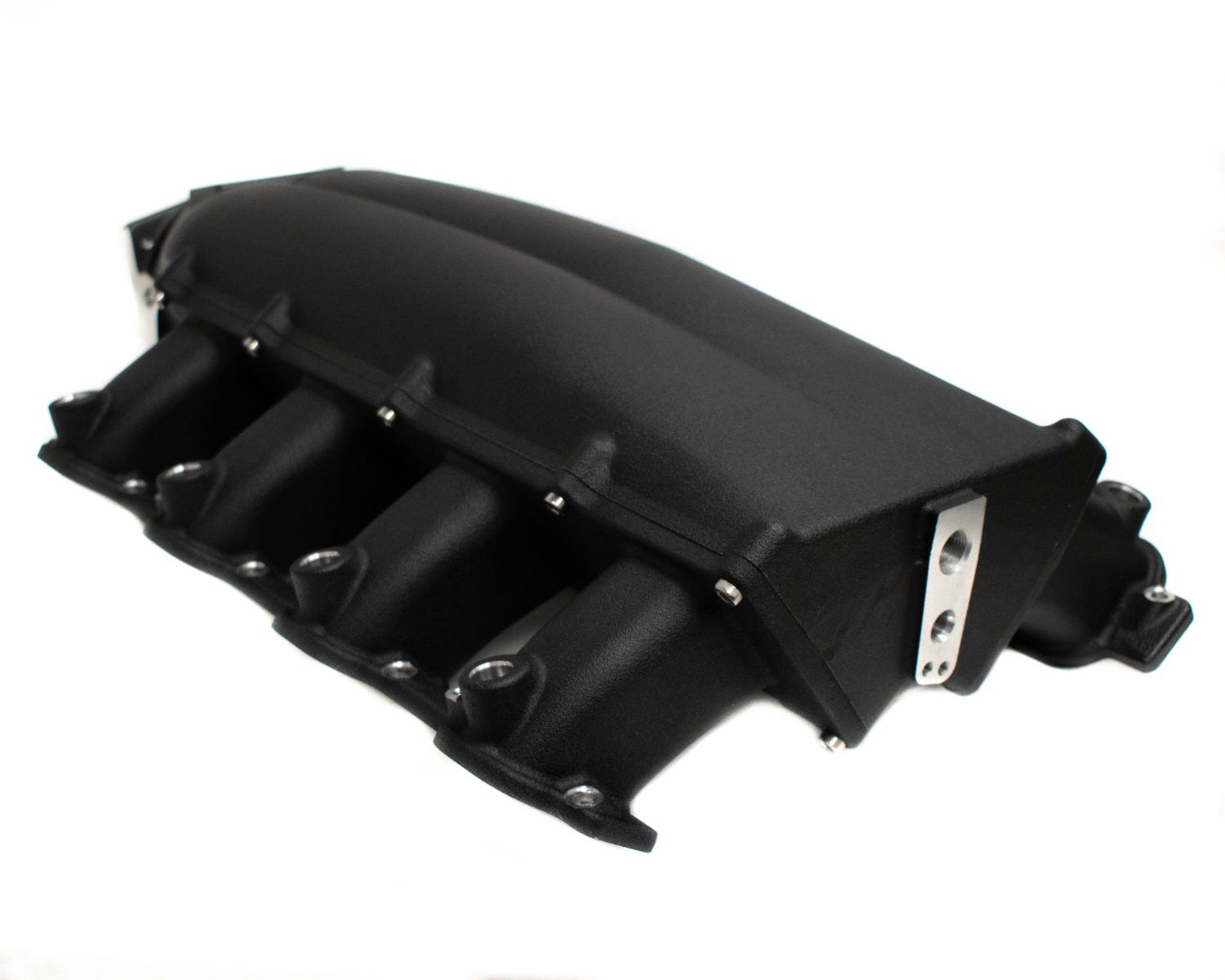

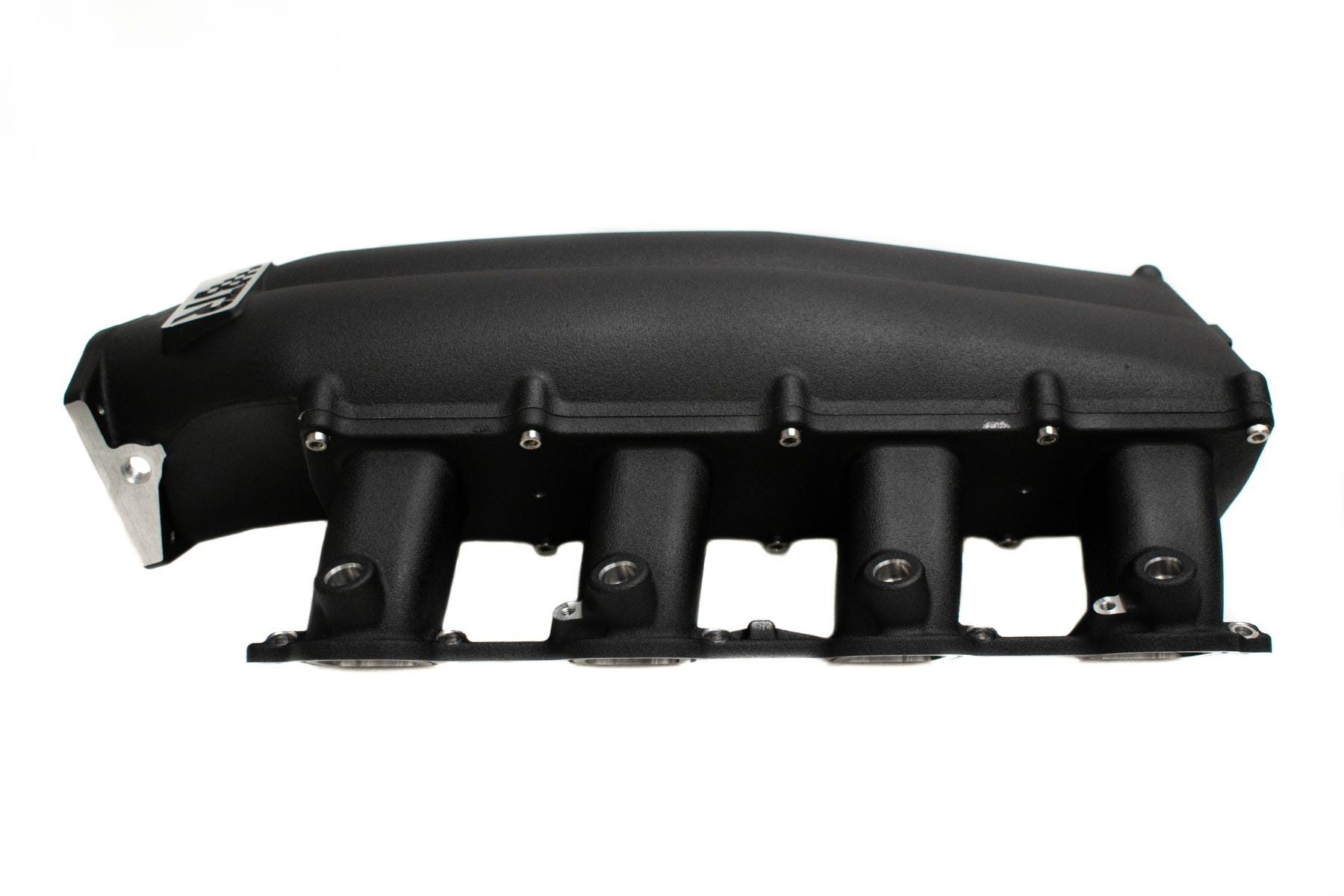

The latest offering from BTR in high quality cast aluminum intake manifolds! The Trinity is short runner, 3-piece design that allows for the ultimate in application flexibility. It is similar in concept to billet Intakes costing thousands more. Optimum operating range is 6000-8500 rpm and is primarily intended to bridge the gap between N/A and Boosted applications. It utilizes the high LT1 throttle body position and will accept DBW or cabled throttle bodies*, but yet it will fit in the tight confines of the C7, C6, C5 Corvette as well as the popular F-body platforms. The design incorporates 2 runners and an interchangeable plenum. The seal is generated by 8 entrapped O-rings at the runner/plenum interface, and is clamped by 20 -M6 Stainless steel socket head cap screws. The port seals are achieved SAE O-rings seated in a dovetailed O-ring groove. Both the port mouth radius and the port match is CNC machined. The Trinity incorporates 2-1/4 -27 NPT ports on the side of the throttle body boss and a 3/8-18” NPT on the rear. The manifold is available in Black Satin Texture powder coat. The manifold comes semi-assembled and includes all the hardware required to bolt it on. Runners and plenums can be purchased separately.
Questions & Answers (37)
Customer questions & answers
-
Will this fit a c7 stingray z51 with stock throttle body
-
Q Will this fit a c7 stingray z51 with stock throttle bodyAsked by on June 13, 2026 1:23 pmThere are no answers for this question yet. Answer now
WHICH FUEL RAILS DO I NEED FOR MY GEN V LT TRINTY INTAKE MANIFOD,ARE DOES IT NEED THEM?
-
Q WHICH FUEL RAILS DO I NEED FOR MY GEN V LT TRINTY INTAKE MANIFOD,ARE DOES IT NEED THEM? answer nowAsked by on January 9, 2026 10:43 amA Email us at support@gwatneyperformance.com so we can better assist youA I have a 2017 Chevy Silverado 5.3 V8 do I need any other applications to hook this to my stock manifold
Will This Pass Emissions In Massachusetts
-
A Not certain on that you may contact the manufacturer ask them
I have a 2014 Silverado that is now a 6.2. Looking for intake manifold recommendations? Does have longtubes and tuned already.
-
Q I have a 2014 Silverado that is now a 6.2. Looking for intake manifold recommendations? Does have...... Read more answer nowAsked by on October 6, 2025 2:58 pmA Email us at support@gwatneyperformance.com so we can better assist you
Are all the parts i need included
-
A Yes
Is it compatible with ls engines for example 5.3 and 6.2 if so what years
-
Q Is it compatible with ls engines for example 5.3 and 6.2 if so what years answer nowAsked by on July 11, 2025 6:19 amA They have a different part number for ls application this is for lt specific
Do you offer a ported version of the Trinity intake manifold for a C7 Corvette? Thank you
-
Q Do you offer a ported version of the Trinity intake manifold for a C7 Corvette? Thank you answer nowAsked by on July 1, 2025 12:01 pmA We do not that's only provided through btr directly
Will it fit On c7 Corvette grand sport with stock throttlebody
-
Q Will it fit On c7 Corvette grand sport with stock throttlebody answer nowAsked by on June 16, 2025 5:14 amA It should yes
I have a BTR Truck Norris cam in a stock Gen V L86 6.2L engine. Will this intake be too much for the engine?
-
Q I have a BTR Truck Norris cam in a stock Gen V L86 6.2L engine. Will this intake be too much for ...... Read more answer nowAsked by on June 12, 2025 2:24 amA Yes likely you'll be better with your stock truck intake manifold vs this for the rpm range that cam operates in
I have a 2023 Camaro LT1 Do I need port injection provision or without? Also I have a 95mm throttle body , can I run a 103mm? The biggest thing I’m doing is a stage 2 camm kit.
-
Q I have a 2023 Camaro LT1 Do I need port injection provision or without? Also I have a 95mm thrott...... Read more answer nowAsked by on May 27, 2025 10:42 amA You won't need port injection
-
- 1
- 2
-
Great manifold for a boosted LT1. Comes with all the hardware you need to get it fitted on the car. Just make sure to get the evap adaptor.
Even though I changed to the hi-ram last min they managed to change order for me and get my hi-ram fast
Great
